32 Inch Digital Touch Screen Display 6mm Glass With Backlit Power Outdoor Digital Totem

32 Inch Digital Touch Screen Display 6mm Glass With Backlit Power Outdoor Digital Totem

Product Details:

Place of Origin: China
Brand Name: ADKIOSK
Certification: CE,FCC,ROHS, CB ,ISO9000, CCC
Model Number: SN-56

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: wooden box
Delivery Time: 15-20DAYS
Payment Terms: T/T, L/C
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Cooling System: Yes Max Resolution: 4K/1920*1080
System: Android Windows Heating System: Optional
Stype: Trible Screen Storage Temperature:: -10℃ — 50℃
High Light:

32Inch Digital Touch Screen Display

,

6mm Digital Touch Screen Display

,

Backlit Outdoor Digital Totem

Product Description

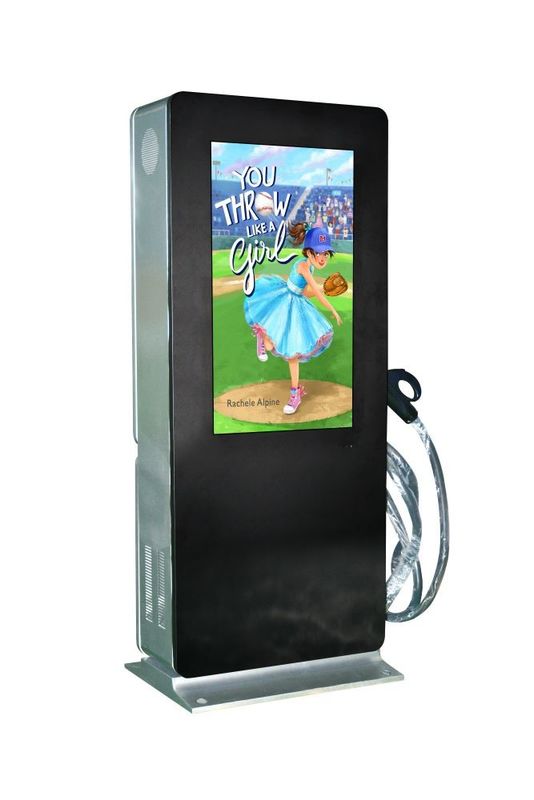

Water proof floor standing car charge totem with 32 inch android digital touch screen display for parking place



Front protective glass

6mm laminated glass



99.99% sun UV
More than 50% of solar radiation
Light transmittance is over 93%
Reflectance is less than 3%
The total heat insulation rate of sunlight is over 50%
Intelligent temperature control system (using imported centrifuge for heat dissipation + industrial heater)
cooling system



Fully intelligent independent research and development of cooling system

Voltage 24V
Operating voltage 20.4-27.6V
Starting voltage 12V
Average speed 2400 rpm minimum speed 2160 rpm
Access to power average 3.12 max 3.74
Average static pressure 2.0 Minimum static pressure 1.8
Electrical parts Backlight power supply According to the peak power and reserve 20% redundancy (Taiwan Mingwei and other first-tier manufacturers)
Lightning protection device Zhengtai lightning protection device
AC contactor Chint AC contactor
Microcomputer time switch Time switch can be set in different time periods. More than 20 groups can be set.
power input AC 108-115V AC 208-240V

work

Make

ring

territory

Fan power supply 24V
Screen display and backlight power supply 24V+12V hybrid power supply 200-400W
Operating temperature -35~55°



Product related

storage temperature -20°C to 60°C
Working humidity 5% to 100%
Storage humidity 5% to 100%
Installation method Floor-mounted installation
External structural member Shape packaging Use pearl cotton shock absorber + wooden frame packaging
Exterior color black

32 Inch Digital Touch Screen Display 6mm Glass With Backlit Power Outdoor Digital Totem 0







32 Inch Digital Touch Screen Display 6mm Glass With Backlit Power Outdoor Digital Totem 1



Shipping & Delivery time



Port:Shenzhen.

FOB,CFR,CIF,door to door.

We can ship out goods via DHL, TNT, by sea, by air, etc.

The DHL/TNT usually takes 3-7working days to arrive;

By air cargo usually takes 4-7 working days to arrive.

Features:


Outdoor highlighting: Clearly visible in all-weather sunlight, with a maximum brightness of 3000 nit;
(optional 1000nit 1500nit 2000nit 2500nit 3000nit).

Intelligent photo-sensing: The whole machine is equipped with a photo-sensing module, the screen
brightness is automatically adjusted with the external brightness, energy saving and comfortable
display effect.

Timing backlight: Supports timing backlight adjustment for 10 groups of time periods, convenient
and easy to operate.

Intelligent temperature control: The intelligent temperature control system automatically adjusts
according to the temperature inside the machine. When the temperature inside the machine exceeds
the allowable range, it automatically turns off the power, enters sleep protection, the temperature
reaches normal values, and resumes the boot mode; the temperature control module can maintain
the constant temperature inside the body Dry environment to prevent fogging and condensation.

Dust-proof and waterproof: The airtight design of the whole machine prevents external dust and
water from entering the interior and reaches IP65 standard

Sun protection and explosion protection: the shell is galvanized cold-rolled steel plate or stainless
steel (optional), which is processed by baking paint, waterproof sun protection, explosion-proof
professional surface technology.

Anti-reflection and anti-reflection: (optional) The front of the product adopts imported or domestic
anti-glare glass, (imported is better than domestic), which can effectively increase the internal light
projection, reduce the reflection of external light, and make the LCD screen display image color more
vivid and bright; Conventional products are equipped with ultra-white tempered glass as standard,
which does not have AR performance, but meets most needs.
