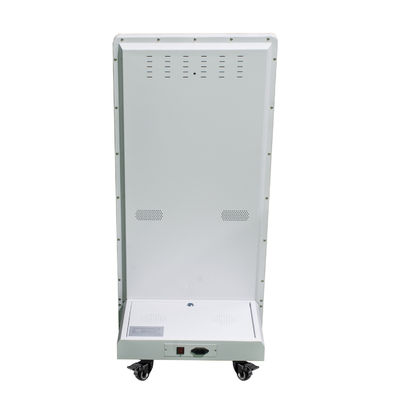

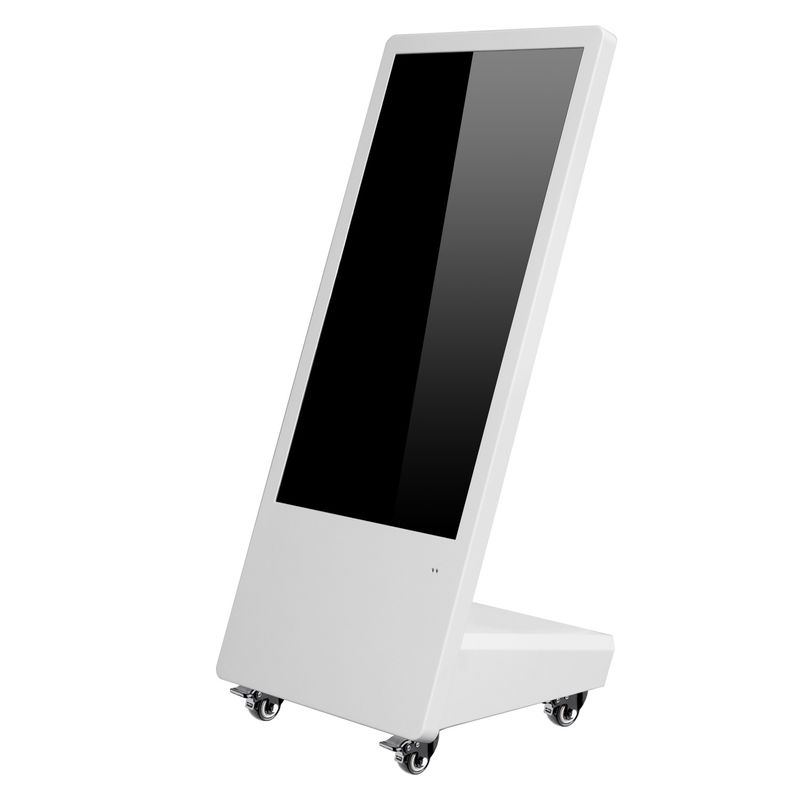

Movable LCD Advertising Digital Signage 32inch Totem With Universal Wheels
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | SNT4310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | outter paper box, middle wooden box and inner foam |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Supplier Type: | ODM, OEM | Compatible HDMI Input/DVI: | Yes |
|---|---|---|---|
| 4G/3G: | Optional | Color:: | White/ Cutomized |
| Lead Time: | 7-10days | Logo: | Optional |
| High Light: | Movable Advertising Digital Signage,ODM Advertising Digital Signage,32inch LCD Ad Display |
||
Product Description
Movable LCD advertising players digital signage and displays totem universal wheels
| Panel Specification | |
| Panel Size | 32inch |
| Display area | 392.8*698.4MM |
| Brand | Lg/Samsung/Auo A grade new panel |
| Resolution | 1920*1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.4835(H)*0.4835(V)mm |
| Brightness | 360cd/m*2 |
| Back Light | LED |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:1 |
| View angle | 178°/178°(H/V) |
| Life time | >60,000 hours |
| Specification | |
| Mainboard | 40A |
| Memory | DDR3-1333 , 1GB (Can expanded to 4GB/8GB/24GB) |
| PC I/O Connectors | 4 * USB 2.0, 2*PS/2,1 * RJ45, 1 * Line-in, 1 * Earphone, 1 * Microphone, 1*HDMI |
| Network | Realtek RTL8103EL |
| Video Card | Intergrated video card on the mainboard |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Operating System | Android 4.2.2 |
| WiFi model | 802.11N Home using Version |
| OSD Language | |
| Menu Language | Chinese, English, |
Our Popular Screen Size
| Size |
Display Area mm |
Resolution | Pixel density |
Brightness (cd/m2) |
Contrast |
View Angle (H/V) |
Response Time (MS) |
| 18.5" | 376.3*301 | 1366*769 | 84PPI | 200 | 1000:1 | 178°/178° | 5 |
| 21.5" | 271.3*479.8 | 1920*1080 | 86PPI | 200 | 2000:1 | 178°/178° | 5 |
| 32” | 698.4*392.8 | 1366*768 | 60PPI | 350 | 1800:1 | 178°/178° | 5 |
| 43” | 941.184*529.416 | 1388*768 | 49PII | 400 | 4000:1 | 178°/178° | 6 |
| 49” | 1073.8*604 | 1920*1080 | 49PII | 300 | 4000:1 | 178°/178° | 6.5 |
| 55" | 1209.6*680.4 | 1920*1080 | 49PII | 400 | 5000:1 | 178°/178° | 6.5 |
| 65" | 1488*868 | 1920*1080 | 49PII | 360 | 5000:1 | 178°/178° | 6.5 |
Our System for Option
| - | Single(USB) Version | Nwtwork(Wifi) | Network(3G) |
| Main Board | A20 | A20 | A20 |
| RAM | 1 GB | 1 GB | 1 GB |
| ROM | 8GB | 8 GB | 8GB |
| Wifi | No | yes | yes |
| 3G or 4G | No | No | yes |
| OS | UCOS | Android 4.4+ | Android 4.4+ |
| Storage | USB or SD card | USB or SD card | USB or SD card |
| Update By | USb or SD | Wifi / USB/SD | 3G / Wifi / USB or SD |
| Long Distance comtrol | No | Yes | Yes |
1. Q: Are you a plant or trading company?
A: We are a lcd advertising player,digital signage,lcd video wall plant, lcd touch screen plant.
2. Q: For the first order, can we place some advertising player, lcd touch screen kiosk sample order for reference?
A: Yes,of course, when you have our lcd digital signgae, lcd advertising player, lcd video wall
samples in hands, you will know more if it is worthy to move forward!
3. Q: About the quality control, how will our plant guarantee it?
A: The quality is always our priority. We have total Quality Control System to control product's We have our own professional engineer with many years' experience. Our factory has gained FCC,CE,Rohs, etc for our LCD video wall, digital signage, advertising players.
4. Q: What is the delivery time of lcd advertising player, digital signage, lcd video wall?
A: For the lcd advertising player, digital signage, lcd video wall in stock, the delivery time is 3~7 days. For customized samples and large quantities order, the delivery time is 20-30 days.
5.Q: What is the price of lcd video wall, digital signage, lcd advertising player? and do you provide customization, OEM or ODM services?
A: Price depend on the functions, sizes, designs, quantities, applications, etc. Please send us inquiry and enable us to quote the price accordingly. We have structure engineer team who can provide customization, OEM and ODM services.
6. Q: What is your MOQ for lcd advertising players, digital signages, lcd video walls?
A: MOQ:1 PCS. Any quantities is acceptable for your order. And the price is negotiable for large quantities.
