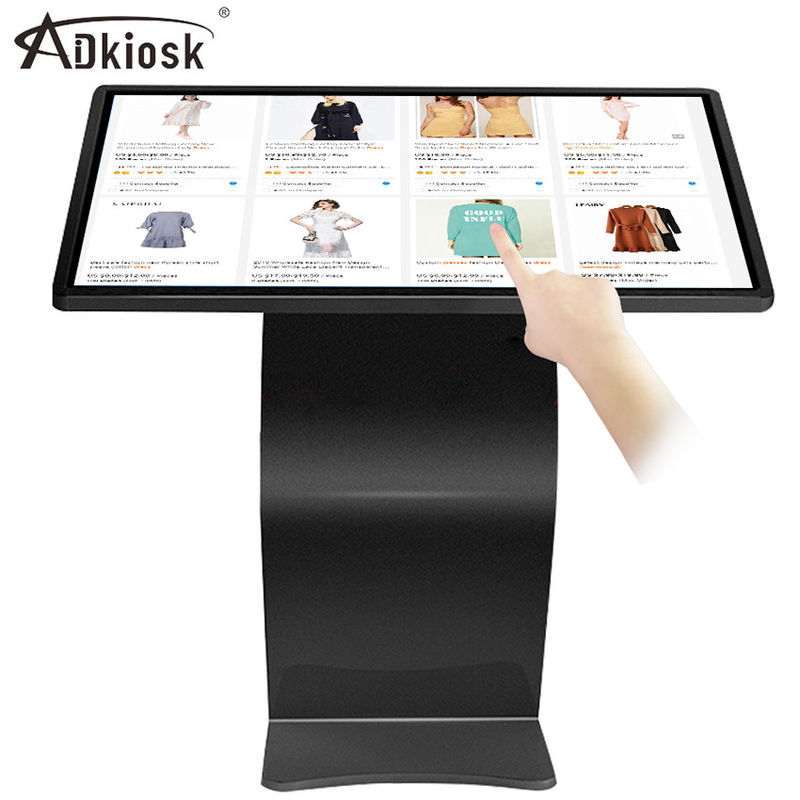

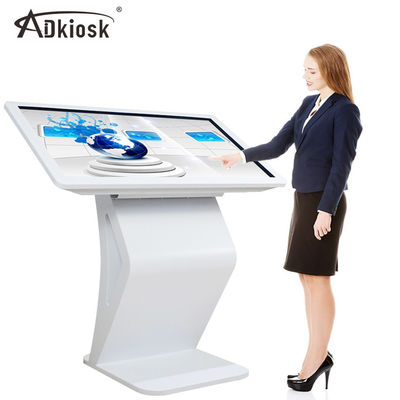

Multi Functional Interactive Digital Display Screens Totem 400cd/m2 LCD 49Inch
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | SNT4310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | 300-700USD |
| Packaging Details: | paper box+wooden box |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Life Time: | >60,000 Hours | Brand: | Lg/Samsung/Auo A Grade New Panel |
|---|---|---|---|
| CPU: | I3 I5 I7 | Mainboard: | H81 |
| Resolution: | 1920*1080 | ||
| High Light: | 49Inch Interactive Digital Display Screens,400cd/m2 Interactive Digital Display Screens,LCD Digital Display Totem |
||
Product Description
49 inch LCD multi-functional touch screen totem interactive digital signage media player
Specifications:
| Resolution | 1920*1080 | ||
| Contrast Ratio | 4000:1 | ||
| Color Resolution | 16.2M | ||
| Brightness | 400CD/m2 | ||
| Touch Technology | Anti-Dust infrared double Touch Screen Kit | ||
| Light Transmission | 90%~92% | ||
| Response Time | Less than 16ms | ||
| Touch Activation Force | Less than 100g(adjust allowed) | ||
| Durability | Scratch-free; More than 50,000,000 touches in one location without failure. | ||
| Surface Hardness | Mohs’ hardness rating of 7 | ||
| Controller Interface | USB and RS232 | ||
| PC Specification | Mini PC | ||
| CPU | INTEL G630 Duo core 2.7GHZ/i3/i5 | ||
| RAM | DDR3,2GB/4GB/8GB | ||
| HDD | 500GB 2.5" | ||
| Graphics | Inter NM10Express | ||
| Chipset | INTEL 5400 | ||
| Ports | 5 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI | ||
| Power Consumption | 30 W | ||
| Operating System | Windows 7 | ||
| Optional Components | |||
| Wireless | 802.11 b/g/n Wi-Fi and antenna | ||
| Thermo printer | 80MM priner SID3250K | ||
| IC card sensor | 1443A/1443B | ||
| Physical Specification | |||
| Kiosk shell material | 1.5mm cold rolled steel+Acrylic cover | ||
| Color | Silver /Black/White/personalized colors. | ||
| Fan | 2 x 12V fans | ||
| Audio | Speakers | 2 x 10W Speakers, 1 x 30W Amplifier | ||
| Ports | Slots | Power input | Power switch | PC switch | USB | LAN | ||
| Cables | Standard power cable | ||
| Power Supply | International 110–240 AC power | ||
| Operating Temp | Humidity | Temperature:+5°C ~ +50°C | Humidity:0% ~ 80% | ||
| Packing Method | Export wooden box+export carton box+4cm foamy. | ||
| Customize Options | |||
| Multi-options | Shell design | Personalized colors, finish, branding & advertising | |
| Screen size | From 18.5" to 65" | ||
| PC components(Optional) |
CPU :IntelD525 Due core 1.8GHZ/G620/I3/I5/I7, Hard disk:500GD HDD,1TB HDD or SSD. RAM: DDR3 2GB/4GB/8GB/16GB,etc. Graphics: optional |
||
| Other Kiosk Components | |||
| Wireless Network | 3G/GPRS modem, wireless, GPS receiver | ||
| Printers | 58mm, 80mm, ticket printers | ||
| Input | Keyboards, Touch pads, Trackballs | ||
| Card Devices | Magnetic / IC / RFID devices, Multi-card reader | ||
| Payment Devices | Debit / Credit Card Payment devices, Bill & Coin devices | ||
| Scanners | Barcode & document scanners | ||
| Authentication | Biometric devices & signature pads | ||
| Power | UPS | ||
| Other | DVD RW, Intrusion Alarm, Proximity Sensor | ||
Applications
| Business Organizations | Supermarket , large-scale shopping malls , exclusive agency , chain shops , large-scale sales , star-rated hotels , restaurants , travel agencies , pharmacy. |
| Financial Organizations |
Banks , negotiable securities , funds , insurance companies , pawnshops; Non-profit Organizations Telecommunications , post offices , hospital , schools; |
| Public Places | subway , airports , stations, gas stations , toll stations , bookstores , parks , exhibition halls , stadiums , museums , convention centers , ticket agencies , HR market , lottery centers; Real Estate Property Apartments , villas , offices , commercial buildings , model rooms , property brokers; |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage rooms , bars , cafes , Internet bars , beauty shops , golf course |
1. Q: Are you a plant or trading company?
A:We are a lcd advertising player,digital signage,lcd video wall plant, lcd touch screen. We integrate R&D team, manufacture,quality control team, sale and after-sale service.
2. Q: Where is your plant located? How can I visit there?
A:Our factory is located in Shenzhen, GuangDong Province, China. About 15 minutes by car from Shenzhen airport we pick you up there. All our clients from home or abroad are warmly welcome to visit us!
3. Q: For the first order, can we place a advertising player, lcd touch screen kiosk sample order?
A: Yes,of course, when you have our lcd digital signgae, lcd advertising player, lcd video wall samples in hands, you will know more if it is worth to move forward!
4. Q: About the quality control, how will our plant guarantee it?
A:The quality is always our priority.We have Total Quality Management System to control quality. We have our own professional engineer with many years’ experience. Our factory has gained FCC, CE, RoHS etc for our lcd video wall, digital signage, lcd advertising player
5. Q: What is the delivery time of lcd advertising player, digital signage, lcd video wall?
A:For the lcd advertising player, digital signage, lcd video wall in stock, for customized samples and large quantities order, the delivery time is 20-30 days.
6.Q:What is the price of lcd video wall, digital signage, lcd advertising player? And do you provide customization, OEM or ODM service?
A:Our price is depend on the functions, sizes, designs, quantities, applications etc, please send the inquiry and tell us more about your requirements and project then enable us to quote the price accordingly. We have structure engineer team which can provide customization, OEM or ODM service.
