21.5 Wall-mounted digital picture frame advertising player wall mounted digital signage

21.5 Wall-mounted digital picture frame advertising player wall mounted digital signage

Product Details:

Place of Origin: China
Brand Name: ADKIOSK
Certification: CE,FCC,ROHS, CB ,ISO9000, CCC
Model Number: new21.5

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: 329-529 usd per pieces
Packaging Details: outter paper box, middle wooden box and inner foam
Delivery Time: 20-30 days
Payment Terms: T/T
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Frame Materiald: Imported White Wood Back Shell Material: Sheet Metal
Maximum Power Consumption Rate: ≤50W Standby Power: ≤0.5W
High Light:

Multimedia Digital Display Wall Mounted


ROHS Digital Photo Display Screen


2K Digital Photo Frame Large Screen

Product Description

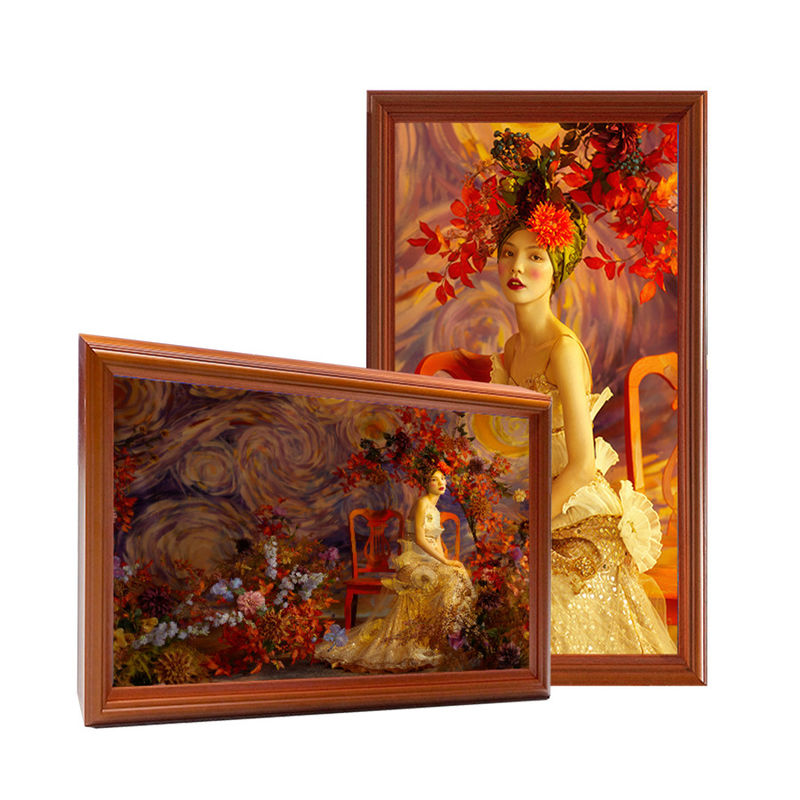

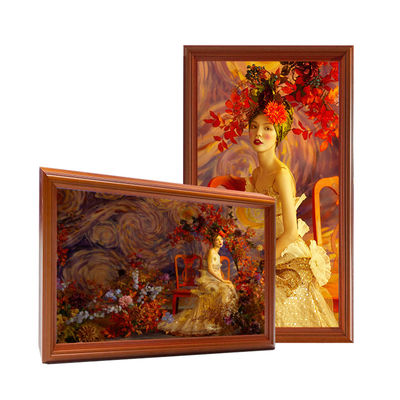

21.5 Wall-mounted digital picture frame advertising player wall mounted digital signage


Structure Appearance

1. Frame material: imported white wood, high-density wood with leaf holes, natural and superior thermal expansion and contraction to prevent deformation of the outer frame. The

frame is made of special wood glue and three-layer nailed edge-sealing to ensure the tight joints of the corners.

2. Display technology: support non-destructive gamma anti-glare display technology, presenting a realistic canvas-level display effect;

3. When wall-mounted installation, the product is tightly attached to the wall, and the gap cannot be greater than 0.5CM; the space behind the product has a space for hidden

installation of the power cord.



Software Part
1.The system is based on TCP/IP network protocol;

2. The digital picture frame advertising machine information release screen system supports web content release and update, and the system supports user management functions and

sub-account management functions;

3. Support OTA remote upgrade;

4. Support boot animation definition

5. Support server/stand-alone mode switching;

6. Support product comes with Wi-Fi hotspot

7. Real-time remote monitoring, self-recovery from system crashes, 7*24 hours unattended;

8. The original ecological Android system, open root permission, can carry out product customization development
9. Unified information release management of mobile phones, support mobile phone release programs, and the software realizes regional split screen at least 4 windows display at

the same time (including picture window, video Window, text window, background music window), each area can be zoomed out and dragged arbitrarily.

10. When there is no network, when converting the stand-alone version, it also supports the mobile terminal to publish programs;

Advertising Digital SignageAdvertising Digital SignageAdvertising Digital SignageLCD Video Wall DisplayWall Mounted Advertising Displaydigital signage advertising displaylcd advertising display screenadvertising displaydigital signage and displaysadvertising playersadvertising screenlcd screenlcd displayadvertising equipment

Shell and appearance Raw wood frame, sheet metal back shell
Wood material Brazilian white wood
Overall dimensions width 781mm* height 476mm thickness 73 mm (including rack)
Packing size width 880mm* height 590mm thickness 140 mm)
Maximum power consumption rate ≤50W
Standby power ≤0.5W
Operating system Android 4.4.4 system adopts quad-core ARM Cortex A9 architecture, running 1G storage 8G; (storage optional 16G/32G)
Board configuration Rockchip RK3188 (28nm process)

ARM Cortex-A9 quad-core 32-bit processor, clocked at 1.6GHz
Mail-400 GPU MP4 quad-core GPU

Support OpenGL ES1.1/2.0, OpenVG1.1, OpenCL
Working voltage 12V, 12V/5V SB optional
Driver screen voltage 3.3V, 5V, 12V optional
TF card TF*1
Serial serial port*1
EMMC 8GB, 16GB, 32GB optional
Microphone Differential MIC input
IO port 4 KIO ports, support 5 IO input and output control, can be used for key scan control
