AC240V Wall Mount Lcd Display BNC Splicing Screen 49in 2x2 3x3
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | lcd splicing screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | outter paper box, middle wooden box and inner foam |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Input Voltag: | AC100V~240V 50/60Hz | Bezel: | 1.7mm, 3.5mm |
|---|---|---|---|
| Panel Size: | 49 Inch 55 Inch 65 Inch | Bracket Type: | Wall Aluminum Bracket |
| Model No.: | LD550DUN-THB8 | Keyword: | Splicing Screen |
| High Light: | AC240V Wall Mount Lcd Display,BNC Wall Mount Lcd Display,49in LCD Video Wall Display |
||
Product Description

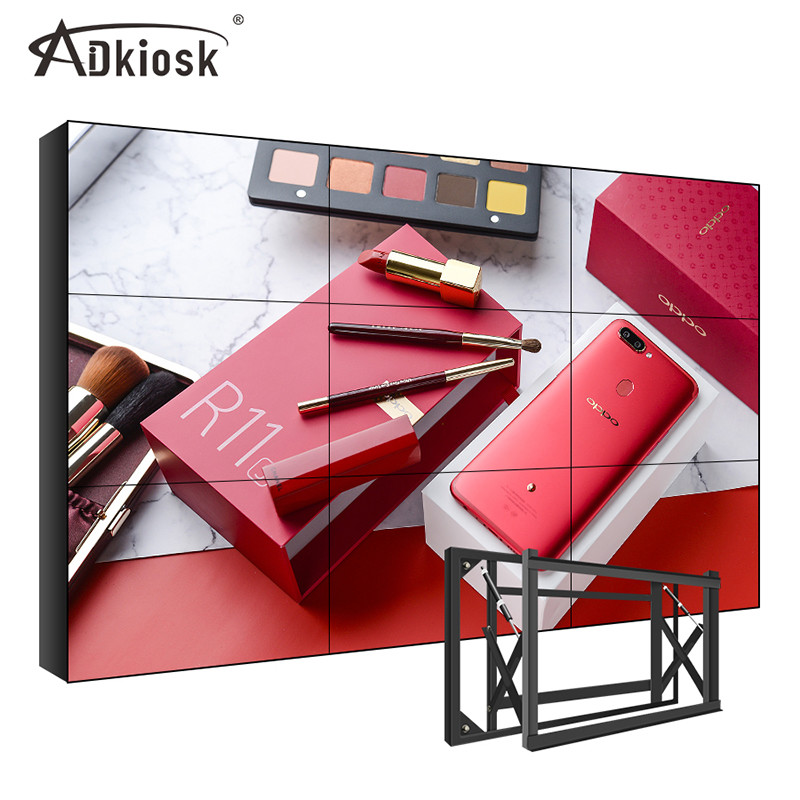

49 Inch 2x2 3x3 Indoor Wall Mount Splicing Screen LCD Video Wall Display
Specification
|
working frequency |
60HZ |
|||
|
Stitching |
3.5mm |
|||
|
USB input |
(usb * 1) can be upgraded to support video picture media playback |
|||
|
HDTV input |
(HDTV * 1) Supports 1920 * 1080 @ 60hz signal input, backward compatible with 4k, customization required |
|||
|
VGA input |
(vga * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility |
|||
|
DVI input |
(dvi * 1) Support 1920 * 1080 @ 60hz signal input for backward compatibility |
|||
|
BNC input |
(bnc * 1) Support ntsc pal and other formats |
|||
|
Remote Receive Input |
(debug * 1) Remote control signal transmission |
|||
|
RJ45 input |
(rj45 * 1) rs232 signal input |
|||
|
RJ45 output |
(rj45 * 2) rs232 signal output |
|||
|
BNC output |
(bnc * 1) Support ntsc pal and other formats |
|||
|
Show diagonal |
AC220V 50/60Hz |
|||
The splicing screen is a complete display unit, which can display a combined large screen after free combination and installation.
The installation is similar to building blocks. After the splicing screen display unit and the splicing screen display unit are combined, the frame (the part of the physical frame that cannot display content) is only 0.88mm wide.
The mainstream size of the splicing screen is: 49 inches/55 inches/65 inches/75 inches, etc.
Features
01
Long life. With the advancement of science and technology, the service life of LCD products can reach more than 50,000 hours (mainly affected by the backlight). The mainstream LED backlight technology in the market in 2021 has basically got rid of the limitations of the CCFL backlight era, and its service life It can reach more than 100,000 hours, and the brightness can reach 1000 lumens, and the light source will not darken after long-term use.
02
The viewing angle is large. For the early liquid crystal products, the viewing angle was once a big problem that restricted the liquid crystal, but with the continuous advancement of liquid crystal technology, this problem has been completely solved. The angle can reach an unprecedented 178 degrees.
03
High-resolution. According to the mainstream technology in the market, the physical resolution of the liquid crystal display can easily reach the retina level that the naked eye cannot distinguish. The brightness and contrast of the liquid crystal are very high, the colors are bright and bright, and the image is stable and does not flicker.
04
Ultra-thin and lightweight. The liquid crystal has the characteristics of thin thickness and light weight, which can be easily spliced and installed. The 55-inch dedicated LCD screen weighs only 30KG and has a thickness of less than 11 cm, which is unmatched by other display devices.
05
The power consumption is extremely small. Liquid crystal display equipment, low power, low heat has always been praised by people, and it is only 3W in standby mode.
06
The failure rate is low. Liquid crystal is the most stable and reliable display device as of 2021. Due to the small heat generation, the device is very stable and will not cause failure due to excessive temperature rise of the components.
