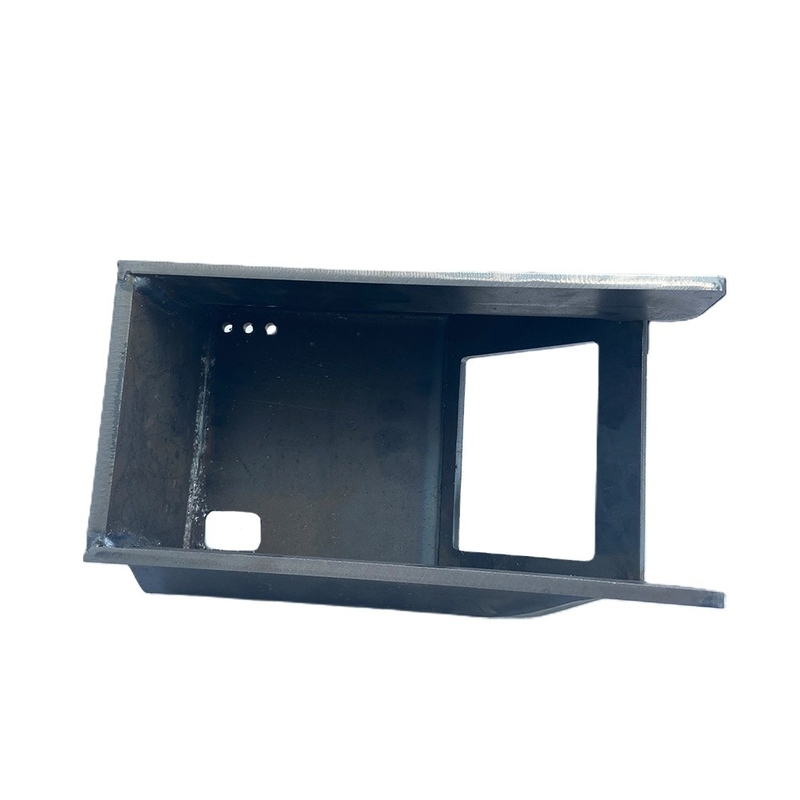

• MIG CMM Sheet Metal Frame Fabrication Vending Machine Shelf Rack ODM
MIG CMM Sheet Metal Frame Fabrication Vending Machine Shelf Rack ODM

MIG CMM Sheet Metal Frame Fabrication Vending Machine Shelf Rack ODM

Product Details:

Place of Origin: China
Brand Name: shenzhen adkiosk
Certification: ccc, ce, rosh
Model Number: sheet metal frame

Payment & Shipping Terms:

Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: outter paper box, middle wooden box and inner foam
Delivery Time: 15-20 days
Payment Terms: T/T
Supply Ability: 10000pcs month
Get Best Price Contact Now

Detail Information

Tolerance: +/-0.01mm Or Special Requirements Keyword: Sheet Metal Fabrication
Color: Black,Customized Material: Carbon Steel, Sheet Metal,stainless Steel
Process: Stamping/Punching/Bending/Reveting/Welding Sample Time: 15-30 Workdays
High Light:

CMM Sheet Metal Frame Fabrication


MIG Sheet Metal Frame Fabrication


ODM Vending Machine Shelf Rack

Product Description

Custom Vending Machine Shelf Rack ODM OEM Sheet Metal Frame Fabrication


General Capabilities Contract Manufacturing
OEM (Original Equipment Manufacturer)
Automation Capabilities CNC/Manual/Robotic Load/Unload
Fabrication Process Laser Cutting/Folding/Forming/Punching Welding/Painting/Powder Coating
Rolling/Shearing/Stamping Plating/Hardware Insertion/Assembly
Welding Process MIG/TIG/Arc/Stick
Materials Used Aluminum/Stainless steel Galvanized steel/Brass/Copper
Cold rolled steel/Hot rolled steel Special requests
Gauge Size / Thickness (Laser) 25mm Max Carbon Steel
30mm Max Stainless Steel & Aluminum
15mm Max Copper & Brass
Inspection Coordinate Measuring Machine (CMM)
First Article
Final 10% of Run Up To 100% Per Customer Request
Industry Standard ISO 9001: 2008
Sheet Metal Product Brackets/Enclosures/Sheet metal parts/Frames Decorative screen/Stamping parts/panels/Covers
Industry Focus Agricultural/Auto/Truck/Transportation Military/Oil Field/Packaging
Chemical/Machine Tool/Medical Pharmaceutical


Basic process and steps of sheet metal processing

The processing of sheet metal parts requires some geometric knowledge. The general procedures of sheet metal processing include: cutting, bending, buckling, bending forming, welding, riveting, surface treatment, etc. The general steps of sheet metal processing are as follows:

1. Design the sheet metal parts drawing, construct the structure of the sheet metal parts in detail, and draw the unfolded drawing, that is, the unfolded drawing of the part with complex structure;

2. There are many ways of blanking, and there are usually several combinations. a. Use a shearing machine to cut out the expanded drawing, that is, the shape, length and width of the required sheet metal parts, combined with punching and die punching, cutting corners, etc.; b. The punching machine requires short working hours and high efficiency, and the punching machine is used to separate Steps: punching out the structure of the flat part after unfolding the part on the plate. c. CNC blanking, by writing a CNC program, the CNC machine tool punches and shapes according to the program. In addition, there is laser cutting, that is, laser cutting.

3. Flanging and tapping Flanging is hole extraction, that is, a larger hole is processed on a smaller base hole to increase strength and prevent slippage. It is usually used for thin sheet metal processing.

4. Punch processing Punch processing is completed by the corresponding mold, such as: punching and cutting corners, punching blanking, punching convex hull and other processing methods.

5. Pressure riveting processing The operation is completed by punching press or pressure riveting machine, such as pressure riveting studs, pressure riveting nuts, and pressure riveting screws.

6. ​​Bending processing is usually completed by the coordination of a processing press and a bending die, and the plane material is made into a three-dimensional shape.

7. Welding Process Welding is to combine multiple parts together. There are usually robot welding, carbon dioxide shielded welding, argon arc welding, spot welding, etc. Choose according to your needs.

8. Surface treatment is usually used to protect the material from oxidation, and to coat the surface of the material with a protective film, such as phosphating film, baking varnish, etc.

9. Assembly Combine multiple parts in a certain way to make them a finished product.


MIG CMM Sheet Metal Frame Fabrication Vending Machine Shelf Rack ODM 0

Want to Know more details about this product
I am interested in MIG CMM Sheet Metal Frame Fabrication Vending Machine Shelf Rack ODM could you send me more details such as type, size, quantity, material, etc.
Waiting for your reply.
