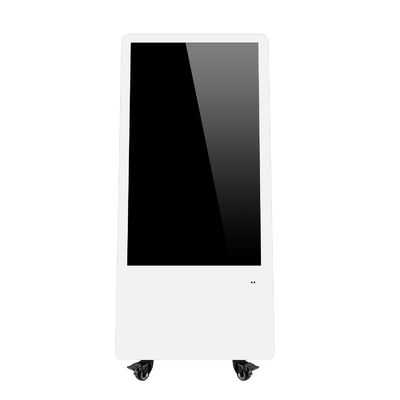

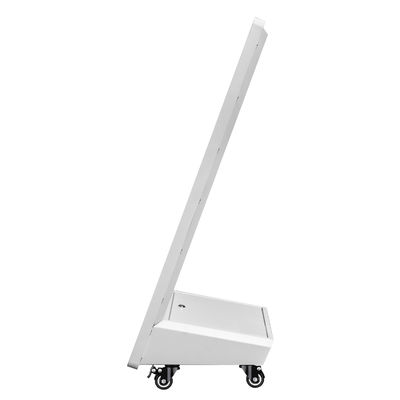

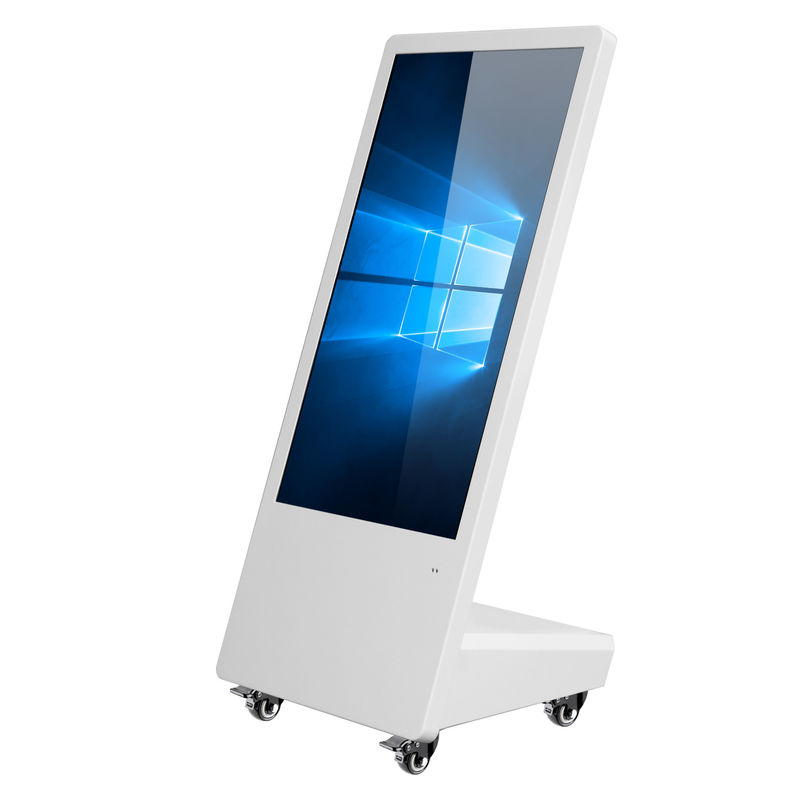

32 inch Floor Standing Digital Signage 16:09 Info LCD Display Advertising Player
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | SNT4310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | outter paper box, middle wooden box and inner foam |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Supplier Type: | ODM, OEM | Compatible HDMI Input/DVI: | Yes |
|---|---|---|---|
| 4G/3G: | Optional | Color:: | White/ Cutomized |
| Lead Time: | 7-10days | Logo: | Optional |
| High Light: | OEM Floor Standing Digital Signage,16:09 Floor Standing Digital Signage,32 Inch Digital Signage |
||
Product Description
32inch info totem lcd display 32 inch lcd panel four wheels advertising player Floor Standing Digital Signage
| Panel Specification | |
| Panel Size | 32inch |
| Display area | 392.8*698.4MM |
| Brand | Lg/Samsung/Auo A grade new panel |
| Resolution | 1920*1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.4835(H)*0.4835(V)mm |
| Brightness | 360cd/m*2 |
| Back Light | LED |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:1 |
| View angle | 178°/178°(H/V) |
| Life time | >60,000 hours |
| Specification | |
| Mainboard | 40A |
| Memory | DDR3-1333 , 1GB (Can expanded to 4GB/8GB/24GB) |
| PC I/O Connectors | 4 * USB 2.0, 2*PS/2,1 * RJ45, 1 * Line-in, 1 * Earphone, 1 * Microphone, 1*HDMI |
| Network | Realtek RTL8103EL |
| Video Card | Intergrated video card on the mainboard |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Operating System | Android 4.2.2 |
| WiFi model | 802.11N Home using Version |
| OSD Language | |
| Menu Language | Chinese, English, |
Our Popular Screen Size
| Size |
Display Area mm |
Resolution | Pixel density |
Brightness (cd/m2) |
Contrast |
View Angle (H/V) |
Response Time (MS) |
| 18.5" | 376.3*301 | 1366*769 | 84PPI | 200 | 1000:1 | 178°/178° | 5 |
| 21.5" | 271.3*479.8 | 1920*1080 | 86PPI | 200 | 2000:1 | 178°/178° | 5 |
| 32” | 698.4*392.8 | 1366*768 | 60PPI | 350 | 1800:1 | 178°/178° | 5 |
| 43” | 941.184*529.416 | 1388*768 | 49PII | 400 | 4000:1 | 178°/178° | 6 |
| 49” | 1073.8*604 | 1920*1080 | 49PII | 300 | 4000:1 | 178°/178° | 6.5 |
| 55" | 1209.6*680.4 | 1920*1080 | 49PII | 400 | 5000:1 | 178°/178° | 6.5 |
| 65" | 1488*868 | 1920*1080 | 49PII | 360 | 5000:1 | 178°/178° | 6.5 |
Our System for Option
| - | Single(USB) Version | Nwtwork(Wifi) | Network(3G) |
| Main Board | A20 | A20 | A20 |
| RAM | 1 GB | 1 GB | 1 GB |
| ROM | 8GB | 8 GB | 8GB |
| Wifi | No | yes | yes |
| 3G or 4G | No | No | yes |
| OS | UCOS | Android 4.4+ | Android 4.4+ |
| Storage | USB or SD card | USB or SD card | USB or SD card |
| Update By | USb or SD | Wifi / USB/SD | 3G / Wifi / USB or SD |
| Long Distance comtrol | No | Yes | Yes |
The Advantage
- Input voltage: 110-240v, Meet all the country requirement
- Single USB version : provide you a simple and easy control way. It support to playing auto when you insert USB or SDcard
- Network can help you unified control all the players by one server Under Wifi or 3G/4G
- DIY setting the contents by yourself with our software
- Split screen. It can split the screen to video area,pictures areas, rolling words ,Time, Wether ,logo and so on.So that it can safe your cost .
- Safe your cost: Now you needn't pay the cost of paper advertising or changing the pictures of paper. And you needn't pay the cost of human for distributing leaflets and changing pictures on the wall. You just need insert USB or Upload at your office
- TFT HD Screen Helps show your content vividly.
- Support Cloud Base system for Auto control.
- Turn on/off Auto setting, Playing time setting auto
