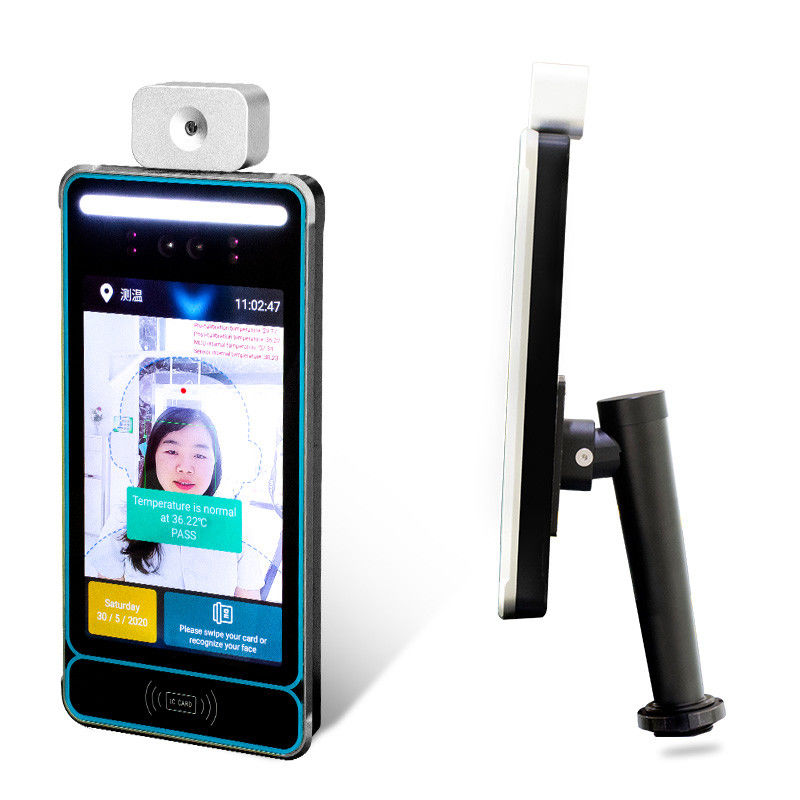

Body Temperature Face Recognition Terminal Access Control 8inch Screen 42 ℃

Body Temperature Face Recognition Terminal Access Control 8inch Screen 42 ℃

Product Details:

Place of Origin: China
Brand Name: ADKIOSK
Certification: CE,FCC,ROHS, CB ,ISO9000, CCC
Model Number: ww-2020

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiate
Packaging Details: outter paper box, middle wooden box and inner foam
Delivery Time: 10-15 days
Payment Terms: T/T, L/C
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Function 1: Face Recognition Terminal Function 2: Body Temperature Measurement
Function 3: Face Recognition Access Control Camera: Binocular Wide Dynamic Camera
Screen Size: 8 Inch (IPS Full-view LCD Display) Focusing Distance: 50-150cm
High Light:

8inch Face Recognition Terminal


ROSH Face Recognition Terminal


42 ℃ Body Temperature Terminal

Product Description

Face Recognition Terminal Body Temperature Check Face Recognition Access Control




Camera Resolution 200W pixels
Model binocular wide dynamic camera
Focusing Distance 50-150cm
White Balance automatic
Screen Size 8 inch (IPS full-view LCD display)
Resolution 800*1280
Processor CPU RK3288 quad-core / RK3399 six-core / MSM8953 eight-core
Accessories Fill Light LED and IR dual fill light
Interface Network Module Supports Ethernet and Wireless (WIFI)
Audio Supports 2.5W / 4R Speakers
USB Interface 1 USB OTG, 1 USB HOST standard A port
Serial Communication Interface 1 RS232 serial port
Relay Output 1 door open signal output
Wiegand Interface 1* Wiegand 26/34 output, 1* Wiegand 26/34 input
Upgrade Button Support Uboot Upgrade Button
Wired Network Interface 1 RJ45 Ethernet Socket
Function Face Detection supports detection and tracking of multiple people at the same time
Face Library Support up to 30,000
1: N Face Recognition support
1: 1 Face Comparison support
Stranger Detection support
Identify Distance Configuration support
UI Interface Configuration support
Remote Device Upgrade support
Device Interface Interfaces include device management, personnel / photo management, record query, etc.
Deployment Method support public cloud deployment, privatized deployment, LAN use, stand-alone use
Infrared Thermal Imaging Module Human Temperature Detection support
Temperature Detection Distance 1 meter(optimal distance 0.5 meter)
Temperature Measurement Accuracy ≤ ± 0.5 ℃
Temperature Measurement Range 10 ℃ ~ 42 ℃
Thermal Field of View 32 X 32 ℃
Visitors' Temperature is Normal and Released Directly support
Body Temperature Over Temperature Alarm support (body temperature alarm value can be set)
General Parameters Protection Class IP65, certain outdoor dustproof and waterproof function
Power Supply DC12V (± 10%)
Operating Temperature ﹣10 ℃ ~ 60 ℃
Storage Temperature -20 ℃ ~ 60 ℃
Power Consumption 13.5W (Max)
Installation Method gate bracket installation
Size 274.24 * 128 * 21.48 (mm)
IC card/ID card:296.18*132.88*25(mm)
Net Weight 1.45kg




Product Features 1, Support 3W face database. 1: 1 comparison recognition rate is more than 99.7%, 1: N comparison recognition rate is more than 96.7%, 0.1% misrecognition rate, live detection accuracy rate is 98.3%, and 1% false rejection rate. Face recognition pass speed is less than 1 second
2, Supports accurate face recognition and comparison when wearing a mask
3, Support human body temperature detection, temperature display, 1-meter ultra-distance body temperature detection, 0.2 ℃ error, support and automatic alarm for body temperature abnormality, second-level detection speed, real-time export of attendance temperature measurement data
4, Supports various peripherals such as ID card reader, fingerprint reader, IC card reader, QR code reader, etc.
5, Support system-level, APP offline, APP + background network-level API docking, complete documentation, support for secondary development
