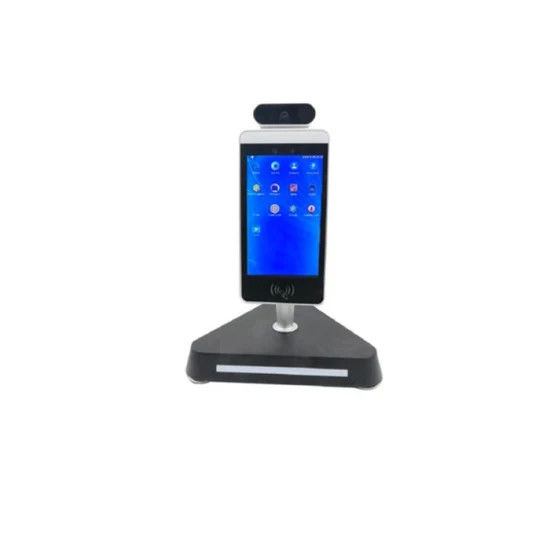

7 Inch Screen desktop Face Recognition Terminal Infrared Thermometer Scanner
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Outer wooden box, middle carton, inner PE cotton |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Base: | Desktop | Local Storage: | Emmc 8g |
|---|---|---|---|
| Size: | 274.24*128*21.48mm | Storage Temperature: | -20°C~60°C |
| High Light: | Facial Recognition Thermal Scanner 8inch,CCC Face Recognition Thermometer,IP65 Thermal Camera Face Recognition |
||
Product Description
7 Inch Screen desktop Face Recognition Terminal Infrared Thermometer Scanner
Product Introduction
Using Rockchip RK3288/RK3399/Qualcomm MSM8953 high-performance hardware platform, equipped with industrial-grade binocular camera and face recognition technology, as well as infrared human body temperature measurement module, and support ID card readers, fingerprint readers and other peripherals Expansion, can be applied to gate channels and access control attendance, to achieve safe and efficient access control for personnel.
Applications
Can be used with access gates and attendance for communities, office buildings, schools, hotels, scenic spots, transportation hubs and other public service places.
Features
Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.
It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.
Attendance temperature measurement data is exported in real time.
Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.
The documentation is complete and supports secondary development.
Support system level, APP offline level, APP + background network level multiple API docking.
| Camera | Resolution | 2 million pixels |
| Type | Binocular wide dynamic camera | |
| Aperture | F2.4 | |
| Focusing distance | 50-150cm | |
| White balance | auto | |
| Photo flood light | LED and IR dual photo flood light | |
| Screen | Size | 8.0 inch IPS LCD screen |
| Resolution | 800×1280 | |
| Touch | Not supported (optional support) | |
| Processor | CPU | RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core) |
| Storage | EMMC 8G | |
| Interface | Network module | Ethernet and wireless (WIFI) |
| Audio | 2.5W / 4R speakers | |
| USB | 1 USB OTG, 1 USB HOST standard A port | |
| Serial communication | 1 RS232 serial port | |
| Relay output | 1 door open signal output | |
| Wiegand | One Wiegand 26/34 output, one Wiegand 26/34 input | |
| Upgrade button | Support Uboot upgrade button | |
| Wired network | 1 RJ45 Ethernet socket | |
| Function | Credit card reader | None (optional IC card reader, ID card, ID card) |
| Face Detection | Supports detection and tracking of multiple people at the same time | |
| Face library | Up to 30,000 | |
| 1: N face recognition | Support | |
| 1: 1 face comparison | Support | |
| Stranger detection | Support | |
| Identify distance | Support | |
| configuration | ||
| UI interface configuration | Support | |
| Upgrade remotely | Support | |
| Interface | Interfaces include device management, personnel / photo management, record query, etc. | |
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | |
| Infrared | Temperature detection | Support |
| thermthermalal | Temperature detection | 1 meter (optimal distance 0.5 meter) |
| imaging module | distance | ≤±0.5℃ |
| Temperature | ||
| measurement accuracy | ||
| Temperature | 10℃~42℃ | |
| measurement range | ||
| Thermalfield of view | 32x 32℃ | |
| visitors" temperature is normal and released directly | support | |
| Abnormal temperaturealarm | Support (temperature alarmvalue can be set) | |
| General parameters | Power | DC12V ( ±10% ) |
| Operating temperature | 0℃~60℃ | |
| Storage temperature | ‘-20℃~60℃ | |
| Power consumption | 13.5W ( Max ) | |
| lnstallation method | Gate bracket installation | |
| size | Standard : 274.24*128*21.48 ( mm ) lC card / lD card : 296.18*132.88*25 ( mm ) |
|
| Packing List | Machine * 1, power adapter * 1, manual* 1, certificate of conformity * 1 | |
