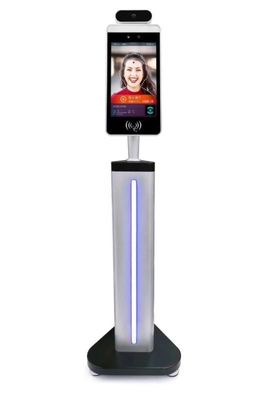

7 Inch Screen floor standing Face Recognition Terminal Infrared Thermometer Scanner

7 Inch Screen floor standing Face Recognition Terminal Infrared Thermometer Scanner

Product Details:

Place of Origin: China
Brand Name: ADKIOSK
Certification: CE,FCC,ROHS, CB ,ISO9000, CCC

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Outer wooden box, middle carton, inner PE cotton
Delivery Time: 5-8days
Payment Terms: T/T, L/C
Supply Ability: 5000pcs/month
Get Best Price Contact Now

Detail Information

Base: Floorstanding Temperature Detection: Support
Measurement Range: 10℃~42℃ Thermalfield Of View: 32x 32℃
High Light:

Facial Recognition Thermal Scanner 8inch


CCC Face Recognition Thermometer


IP65 Thermal Camera Face Recognition

Product Description

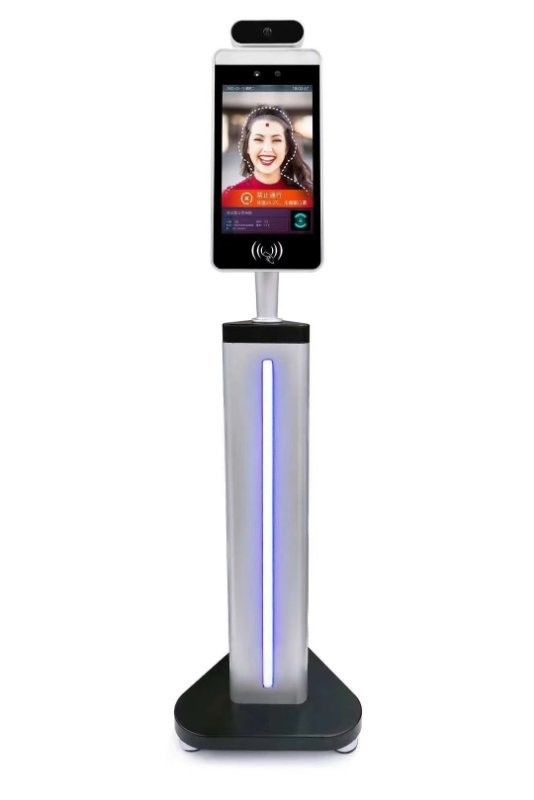

7 Inch Screen floor standing Face Recognition Terminal Infrared Thermometer Scanner

Face Recognition In Seconss:
All-in-one temperature measuring machine supports binocular live detection,recognition in seconds, anti-glare backlight,mask recognition, and no mask. Voice prompt: No mask.
Infrared Thermal Imaging Body Temperature Detection:
the body temperature can be accurately measured within 0.5 meters, the temperature measurement accuracy is as highas ±0.2 ℃, the body temperature abnormal equipment automatically alarms.
Dual Camera Design:
binocular detection, accurate recognition, reducing the impact of facial expressions and the risk of photo fraud,can be used during the day and night.


Can be used with access gates and attendance for communities, office buildings, schools, hotels, scenic spots, transportation hubs and other public service places.



Supports human body temperature detection and temperature display. The best temperature detection distance is 0.5 meters. The longest distance at which body temperature can be measured is 1 meter. The measurement error is plus or minus 0.5 ℃.

It only takes a few seconds for detection, and supports automatic alarm for body temperature abnormality.

Attendance temperature measurement data is exported in real time.

Supports various peripheral expansions such as ID card reader, fingerprint reader, IC card reader, two-dimensional code reader, etc.

The documentation is complete and supports secondary development.

Support system level, APP offline level, APP + background network level multiple API docking.


Camera Resolution 2 million pixels
Type Binocular wide dynamic camera
Aperture F2.4
Focusing distance 50-150cm
White balance auto
Photo flood light LED and IR dual photo flood light
Screen Size 8.0 inch IPS LCD screen
Resolution 800×1280
Touch Not supported (optional support)
Processor CPU RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Storage EMMC 8G
Interface Network module Ethernet and wireless (WIFI)
Audio 2.5W / 4R speakers
USB 1 USB OTG, 1 USB HOST standard A port
Serial communication 1 RS232 serial port
Relay output 1 door open signal output
Wiegand One Wiegand 26/34 output, one Wiegand 26/34 input
Upgrade button Support Uboot upgrade button
Wired network 1 RJ45 Ethernet socket
Function Credit card reader None (optional IC card reader, ID card, ID card)
Face Detection Supports detection and tracking of multiple people at the same time
Face library Up to 30,000
1: N face recognition Support
1: 1 face comparison Support
Stranger detection Support
Identify distance Support
UI interface configuration Support
Upgrade remotely Support
Interface Interfaces include device management, personnel / photo management, record query, etc.
Deployment method Support public cloud deployment, privatized deployment, LAN use, stand-alone use
Infrared Temperature detection Support
thermthermalal Temperature detection 1 meter (optimal distance 0.5 meter)
imaging module distance ≤±0.5
measurement accuracy
Temperature 10~42
measurement range
Thermalfield of view 32x 32
visitors" temperature is normal and released directly support
Abnormal temperaturealarm Support (temperature alarmvalue can be set)
General parameters Power DC12V ( ±10% )
Operating temperature 0~60
Storage temperature ‘-20~60
Power consumption 13.5W ( Max )
lnstallation method Gate bracket installation
size Standard : 274.24*128*21.48 ( mm )
lC card / lD card : 296.18*132.88*25 ( mm )
Packing List Machine * 1, power adapter * 1, manual* 1, certificate of conformity * 1
