7 Inch Screen multi function Face Recognition Terminal Infrared Thermometer Scanner
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Outer wooden box, middle carton, inner PE cotton |
| Delivery Time: | 5-8days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Audio: | 2.5W / 4R Speakers | Serial Communication: | 1 RS232 Serial Port |
|---|---|---|---|
| Wired Network: | 1 RJ45 Ethernet Socket | Face Library: | Up To 30,000 |
| High Light: | Facial Recognition Thermal Scanner 8inch,CCC Face Recognition Thermometer,IP65 Thermal Camera Face Recognition |
||
Product Description

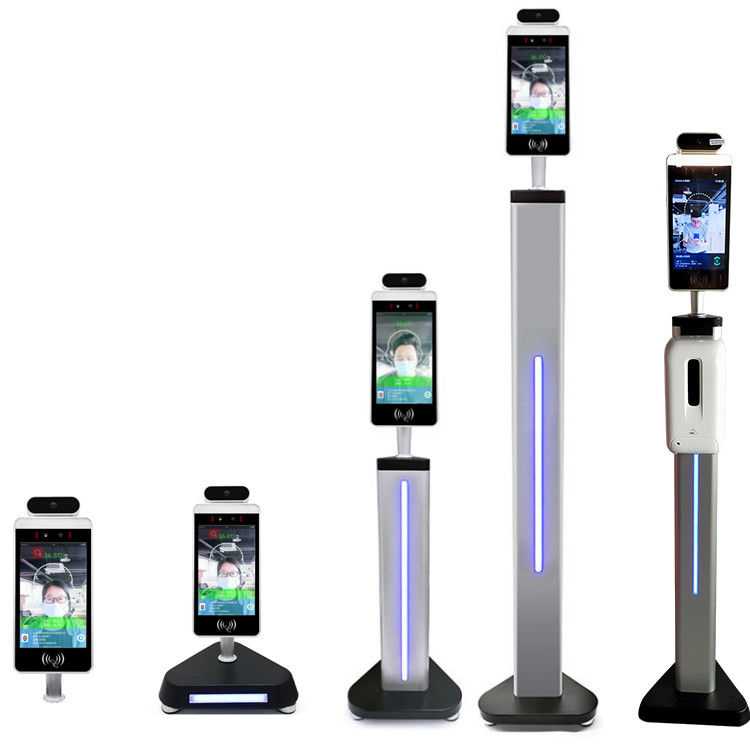

7 Inch Screen multi function Face Recognition Terminal Infrared Thermometer Scanner
Applicable Scenarios:
1.Widely suitable for various places with a large number of people, suitable for schools
residential areas,supermarkets,factories and other places.
Product Features:
1. Support 3W face database. 1: 1 comparison recognition rate is more than 99.7%, 1: N comparison recognition rate is more than 96.7%, 0.1% misrecognition rate, live detection accuracy rate is 98.3%, and 1% false rejection rate. Face recognition pass speed is less than 1 second.
2. Supports accurate face recognition and comparison when wearing a mask
| Camera | Resolution | 2 million pixels |
| Type | Binocular wide dynamic camera | |
| Aperture | F2.4 | |
| Focusing distance | 50-150cm | |
| White balance | auto | |
| Photo flood light | LED and IR dual photo flood light | |
| Screen | Size | 8.0 inch IPS LCD screen |
| Resolution | 800×1280 | |
| Touch | Not supported (optional support) | |
| Processor | CPU | RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core) |
| Storage | EMMC 8G | |
| Interface | Network module | Ethernet and wireless (WIFI) |
| Audio | 2.5W / 4R speakers | |
| USB | 1 USB OTG, 1 USB HOST standard A port | |
| Serial communication | 1 RS232 serial port | |
| Relay output | 1 door open signal output | |
| Wiegand | One Wiegand 26/34 output, one Wiegand 26/34 input | |
| Upgrade button | Support Uboot upgrade button | |
| Wired network | 1 RJ45 Ethernet socket | |
| Function | Credit card reader | None (optional IC card reader, ID card, ID card) |
| Face Detection | Supports detection and tracking of multiple people at the same time | |
| Face library | Up to 30,000 | |
| 1: N face recognition | Support | |
| 1: 1 face comparison | Support | |
| Stranger detection | Support | |
| Identify distance | Support | |
| configuration | ||
| UI interface configuration | Support | |
| Upgrade remotely | Support | |
| Interface | Interfaces include device management, personnel / photo management, record query, etc. | |
| Deployment method | Support public cloud deployment, privatized deployment, LAN use, stand-alone use | |
| Infrared | Temperature detection | Support |
| thermthermalal | Temperature detection | 1 meter (optimal distance 0.5 meter) |
| imaging module | distance | ≤±0.5℃ |
| Temperature | ||
| measurement accuracy | ||
| Temperature | 10℃~42℃ | |
| measurement range | ||
| Thermalfield of view | 32x 32℃ | |
| visitors" temperature is normal and released directly | support | |
| Abnormal temperaturealarm | Support (temperature alarmvalue can be set) | |
| General parameters | Power | DC12V ( ±10% ) |
| Operating temperature | 0℃~60℃ | |
| Storage temperature | ‘-20℃~60℃ | |
| Power consumption | 13.5W ( Max ) | |
| lnstallation method | Gate bracket installation | |
| size | Standard : 274.24*128*21.48 ( mm ) lC card / lD card : 296.18*132.88*25 ( mm ) |
|
| Packing List | Machine * 1, power adapter * 1, manual* 1, certificate of conformity * 1 | |
