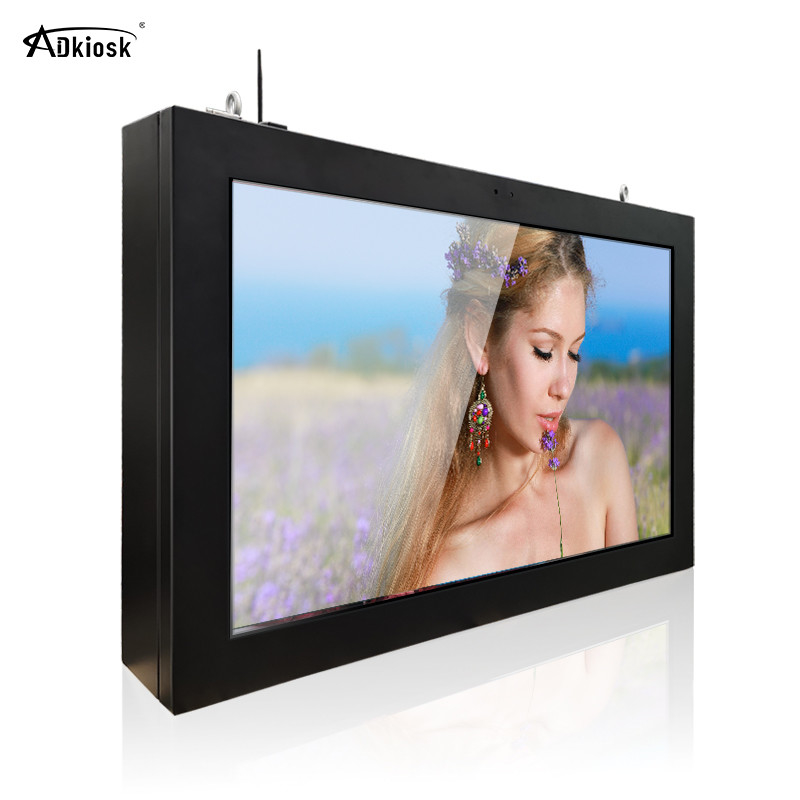

Tempered Glass Outdoor LCD Screen 500cd/M2 1080p Ip55 Wall Mounted
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | wall mounted digital signage outdoor lcd screen |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 15-20DAYS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Keyword: | Wall Mounted Outdoor Digital Signage | Max Resolution: | 4K/1920*1080 |
|---|---|---|---|
| Brightness: | 2,000-3500cd/m2 | Aspect Ratio: | 16: 9 |
| Color: | White/grey/black/silver | Product Name: | Outdoor Wall Mountable Advertising Player |
| High Light: | Tempered Glass Outdoor LCD Screen,500cd/M Outdoor LCD Screen,Ip55 Wall Mounted Digital Signage |
||
Product Description
Full Hd 1080p Ip55 Outdoor LCD Screen Digital Signage Advertising Player Wall Mounted
Specification
|
Glass |
5mm Tempered glass |
|
Maximum Resolution |
1920*1080 |
|
Display Color |
16.7m |
|
Viewing Angle |
H178°V178° |
|
Aspect Ratio |
16:9 |
|
Life Span |
70000h |
|
Response Time |
5ms |
|
Operating Enviroment |
|
|
Voltage |
AC110-240V |
|
Operating Temperature |
0-50° |
|
Operating Humidity |
10%-85% |
|
Working Environment |
Outdoor |
|
Appearance |
|
|
Color |
Black |
|
Front |
Tempered glass |
|
LCD |
TFT LCD |
|
Packing Size |
196.8*87*16cm |
Technique Parameter for LCD Panel:
1. Panel size 32'', 43", 49'', 55'', 65'', 75'', options, LED backlight, All New A+ panel
2. Maximum resolution: 1920x1080 or 4K options
3. Brightness (nits) 1000nits to 3000nits
4. Life(hrs) 60,000(hrs)
5. With screen sensor to check screen display status by system.
6. With touch or without touch options
Outershell:
1. IP65 level outershell is made by galvanized sheet.
2. With a protection layer of high-penetrating Tempered glass (with 5-8mm thickness) on the surface of the LCD Panel.
3. Surface finishing: heavy industrial grade of powder coating with an anti-wear texture for Outdoor using.
4. Water-proof, dust-proof double layer outershell,vandal proof.
Android OS Solution
1, CPU: Quad core Cortex-A17, 2.0GHZ,
2, GPU: ARM Mali-T764 GPU
3, DDR: DDR3 2G
4, FLASH: 8G
5, Exteral ROM Support up to 32G bytes sd card,
6, WiFi Support 802.11b/g/n wifi module
Outdoor OMC system (outdoor maintenance and management cloud software system):
1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration
sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor, tilt sensor).
2. Problem and staus monitoring software included.Touble shooting by software included.
3.Use softwae Remote Check key working performance by Group, Unnormal work alarm generation.
Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
