55inch Double Sided Free Standing LCD Display 3G 4G 4mm Glass For Shopping Mall
Product Details:
| Place of Origin: | China |
| Brand Name: | ADKIOSK |
| Certification: | CE,FCC,ROHS, CB ,ISO9000, CCC |
| Model Number: | SNT4310 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | outter paper box, middle wooden box and inner foam |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Supplier Type: | ODM, OEM | Compatible HDMI Input/DVI: | Yes |
|---|---|---|---|
| 4G/3G: | Optional | Color:: | White/ Cutomized |
| Lead Time: | 7-10days | Logo: | Optional |
| High Light: | 55inch Free Standing LCD Display,4G Free Standing LCD Display,4mm Double Sided LCD Display |
||
Product Description

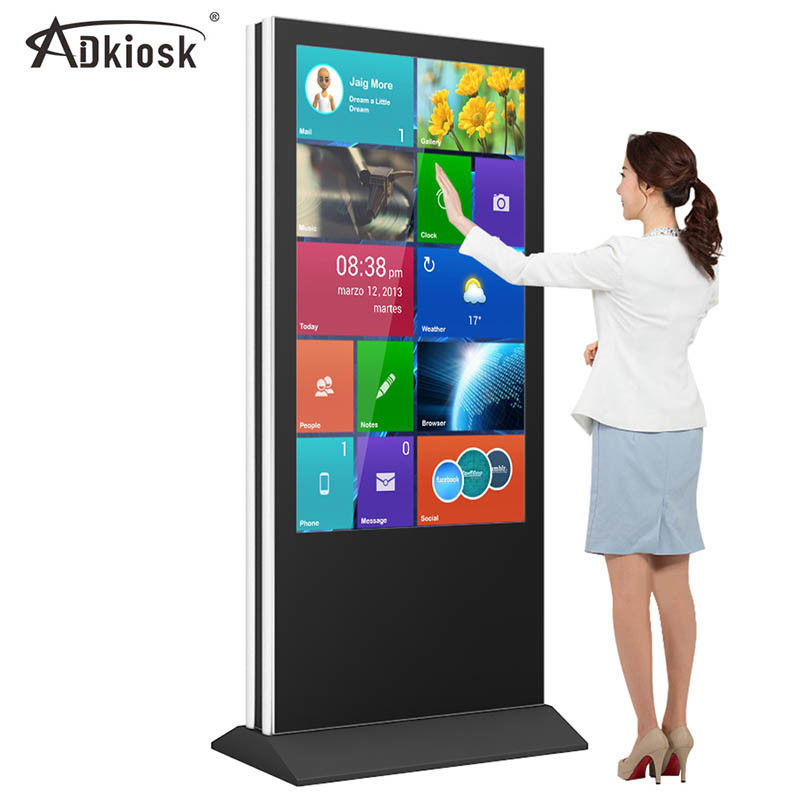

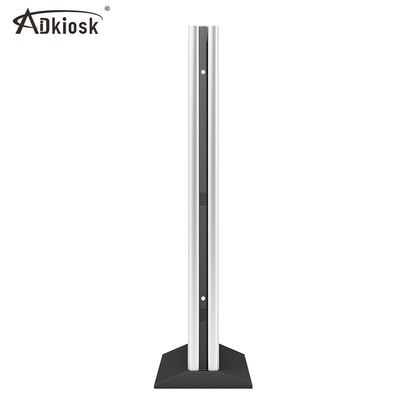

55inch floor stand double side free standing lcd display advertising for shopping mall and public using
| Touch screen kiosk | ||||
| Model No | ||||
| LCD Display | TFT LCD 42” | |||
| Resolution | 1920*1080 | |||
| Contrast Ratio | 4000:1 | |||
| Color Resolution | 16.2M | |||
| Brightness | 450CD/m2 | |||
| Touch Technology | Anti-Dust SAW Touch Screen Kit | |||
| Resolution | 4096 x 4096 | |||
| Glass thickness | 4mm | |||
| Deviation of Error | 2mm | |||
| Light Transmission | 90%~92% | |||
| Response Time | Less than 16ms | |||
| Touch Activation Force | Less than 100g(adjust allowed) | |||
| Durability | Scratch-free; More than 50,000,000 touches in one location without failure. | |||
| Surface Hardness | Mohs’ hardness rating of 7 | |||
| Controller Interface | USB and RS232 | |||
| PC Specification | Mini PC | |||
| CPU | INTEL G630 Duo core 2.7GHZ | |||
| RAM | DDR3,2GB | |||
| HDD | 500GB 2.5" | |||
| Graphics | Inter NM10Express | |||
| Chipset | INTEL 5400 | |||
| Ports | 4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI | |||
| Power Consumption | 30 W | |||
| Operating System | Windows 7 32bit home base | |||
| Optional Components | ||||
| Wireless | 802.11 b/g/n Wi-Fi and antenna | |||
| Thermo printer | 80MM priner SID3250K | |||
| IC card sensor | 1443A/1443B | |||
| Physical Specification | ||||
| Kiosk shell material | 1.5mm cold rolled steel+Acrylic cover | |||
| Color | Silver /Black/White/personalized colors. | |||
| floor stand support | With floor stand slim shape | |||
| Fan | 2 x 12V fans | |||
| Audio | Speakers | 2 x 10W Speakers, 1 x 30W Amplifier | |||
| Ports | Slots | Power input | Power switch | PC switch | USB | LAN | |||
| Cables | Standard power cable | |||
| Power Supply | International 110–240 AC power | |||
| Operating Temp | Humidity | Temperature:+5°C ~ +50°C | Humidity:0% ~ 80% | |||
| Weight & Dimension | 75KG, 2000*180*800(H*W*D) | |||
| Packing Method | Export wooden box+export carton box+4cm foamy. | |||
| Packing Weight & Dimension | 110kg, 2150 x 250x 980mm(H*W*D) with wooden box | |||
| Customize Options | ||||
| Multi-options | Shell design | Personalized colors, finish, branding & advertising | ||
| Screen size | From 18.5" to 65" | |||
| PC components(Optional) |
CPU :IntelD525 Due core 1.8GHZ/G620/I3/I5/I7, Hard disk:500GD HDD,1TB HDD or SSD. RAM: DDR3 2GB/4GB/8GB/16GB,etc. Graphics: optional |
|||
| Other Kiosk Components | ||||
| Wireless Network | 3G/GPRS modem, Bluetooth, GPS receiver | |||
| Printers | 58mm, 80mm, ticket printers | |||
| Input | Keyboards, Touch pads, Trackballs | |||
| Card Devices | Magnetic / IC / RFID devices, Multi-card reader | |||
| Payment Devices | Debit / Credit Card Payment devices, Bill & Coin devices | |||
| Scanners | Barcode & document scanners | |||
| Authentication | Biometric devices & signature pads | |||
| Power | UPS | |||
| Other | DVD RW, Intrusion Alarm, Proximity Sensor | |||
| Attention Points | ||||
| Comments | Specifications are subject to change | |||
| Please contact a sales for further information | ||||
Our Popular Screen Size
| Size |
Display Area mm |
Resolution | Pixel density |
Brightness (cd/m2) |
Contrast |
View Angle (H/V) |
Response Time (MS) |
| 18.5" | 376.3*301 | 1366*769 | 84PPI | 200 | 1000:1 | 178°/178° | 5 |
| 21.5" | 271.3*479.8 | 1920*1080 | 86PPI | 200 | 2000:1 | 178°/178° | 5 |
| 32” | 698.4*392.8 | 1366*768 | 60PPI | 350 | 1800:1 | 178°/178° | 5 |
| 43” | 941.184*529.416 | 1388*768 | 49PII | 400 | 4000:1 | 178°/178° | 6 |
| 49” | 1073.8*604 | 1920*1080 | 49PII | 300 | 4000:1 | 178°/178° | 6.5 |
| 55" | 1209.6*680.4 | 1920*1080 | 49PII | 400 | 5000:1 | 178°/178° | 6.5 |
| 65" | 1488*868 | 1920*1080 | 49PII | 360 | 5000:1 | 178°/178° | 6.5 |
Our System for Option
| - | Single(USB) Version | Nwtwork(Wifi) | Network(3G) |
| Main Board | A20 | A20 | A20 |
| RAM | 1 GB | 1 GB | 1 GB |
| ROM | 8GB | 8 GB | 8GB |
| Wifi | No | yes | yes |
| 3G or 4G | No | No | yes |
| OS | UCOS | Android 4.4+ | Android 4.4+ |
| Storage | USB or SD card | USB or SD card | USB or SD card |
| Update By | USb or SD | Wifi / USB/SD | 3G / Wifi / USB or SD |
| Long Distance comtrol | No | Yes | Yes |
The Advantage
- Input voltage: 110-240v, Meet all the country requirement
- Single USB version : provide you a simple and easy control way. It support to playing auto when you insert USB or SDcard
- Network can help you unified control all the players by one server Under Wifi or 3G/4G
- DIY setting the contents by yourself with our software
- Split screen. It can split the screen to video area,pictures areas, rolling words ,Time, Wether ,logo and so on.So that it can safe your cost .
- Safe your cost: Now you needn't pay the cost of paper advertising or changing the pictures of paper. And you needn't pay the cost of human for distributing leaflets and changing pictures on the wall. You just need insert USB or Upload at your office
- TFT HD Screen Helps show your content vividly.
- Support Cloud Base system for Auto control.
- Turn on/off Auto setting, Playing time setting auto
| Indoor Digital Display Features |
|
1. Only professional / commercialgrade A+ are used for our products.High brightness and contrast ratios are the key in delivering great visible advertising.
|
| 2. By using the visual extension technology ( S-PVA )it will give an easy 178 degrees viewing angle.No deformed pictures and no color distortion,perfect viewing. |
| 3. With a fast 5ms response time, blur, ghosting and distortion will be eliminated, giving way to a perfect dynamic picture . |
| 4. Easy upgradable options available; Android,Windows and network. |
| 5. Full metal shielding structure will prevent any exterior electromagnetic interference. |
| 6. Units are equipped with high quality digital audio outputs.Equipped with 3D reduction technology. |
| 7.Intelligent temperature control system will regulate and protect the equipment.Keeping the unit performance at peak level. |
